🚀 Ruby on Rails Action Controller — The Complete Deep Dive Guide (From Request to Response!)

When a user clicks a button on your Rails app…
💡 What exactly happens behind the scenes?

How does the request travel from the browser → server → router → controller → model → view → and back?

Today, we’ll break down Ruby on Rails Action Controller in full depth — step by step, class by class, parameter by parameter.

🌍 1️⃣ The Journey Begins: HTTP Request

When a user hits:

https://yourapp.com/posts/1

The browser sends an HTTP request like:

GET /posts/1 HTTP/1.1

This request contains:

• 🛣 Path: /posts/1
• 🔁 HTTP Verb: GET
• 📦 Headers
• 🧾 Cookies
• 🧮 Query Parameters
• 🔐 Session info

Now Rails takes over.

🔥 2️⃣ Rack — The Entry Point

Rails sits on top of Rack (Ruby Webserver Interface).

Flow:

Web Server (Puma)
     ↓
Rack Middleware Stack
     ↓
Rails Application

Rails app responds to:

call(env)

Where:

• env = Huge Hash containing request details.
•


Example:

env["REQUEST_METHOD"] # => "GET"
env["PATH_INFO"]      # => "/posts/1"

🛣 3️⃣ Routing Layer — config/routes.rb

The request now reaches:

# config/routes.rb
resources :posts

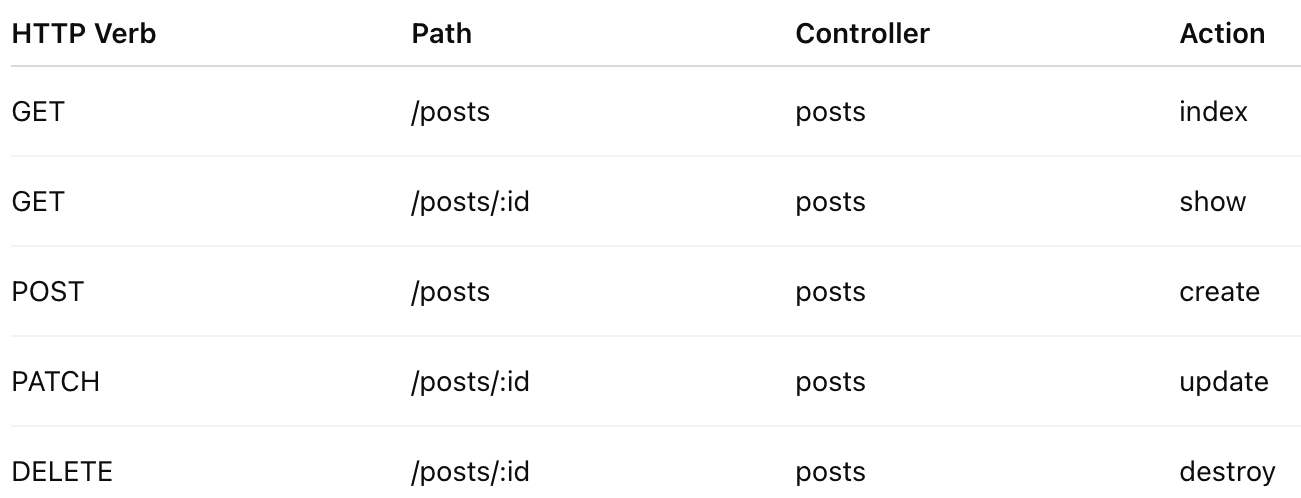

This automatically generates:

So:

GET /posts/1

Matches:

PostsController#show

Routing internally creates:

{
  controller: "posts",
  action: "show",
  id: "1"
}

This hash becomes params later.

🎯 4️⃣ Controller Instantiation

Now Rails loads:

class PostsController < ApplicationController
end

Important hierarchy:

ActionController::Base
        ↑
ApplicationController
        ↑
PostsController

What ActionController::Base Provides:

• Params handling
• Sessions
• Cookies
• Rendering
• Redirecting
• Filters (before_action)
• Strong Parameters
• CSRF Protection

⚙️ 5️⃣ Dispatch Process — Action Execution

Internally Rails runs something like:

PostsController.action(:show).call(env)

Which:

1. Creates controller instance
2. Sets request & response objects
3. Runs callbacks
4. Executes action method

🧠 6️⃣ The Action Method

Example:

def show
  @post = Post.find(params[:id])
end

🔹 Where does params come from?

Rails builds params from:

• Route parameters (:id)
• Query parameters (?page=2)
• POST body parameters

Example:

/posts/1?page=2

params = {
  "id" => "1",
  "page" => "2",
  "controller" => "posts",
  "action" => "show"
}

params is an instance of:

ActionController::Parameters

🔐 7️⃣ Strong Parameters (Security Layer)

Rails protects mass assignment.

Example:

def post_params
  params.require(:post).permit(:title, :content)
end

Why?

Because without this:

Post.create(params[:post])

Could allow malicious fields like:

admin: true

Strong parameters prevent that 🚫

🎛 8️⃣ Before, After & Around Actions

before_action :authenticate_user!
after_action :log_request
around_action :measure_time

Execution Flow:

before_action
     ↓
action method
     ↓
after_action

Around action wraps:

def measure_time
  start = Time.now
  yield
  puts Time.now - start
end

🍪 9️⃣ Sessions & Cookies

Cookies:

cookies[:user_id] = 10

Sessions:

session[:user_id] = 10

Sessions are stored:

• Cookie Store (default)
• Redis
• Database
• Cache Store

🎨 🔟 Rendering Response

After action completes, Rails decides:

Case 1️⃣: Implicit Render

def show
  @post = Post.find(params[:id])
end

Rails automatically renders:

app/views/posts/show.html.erb

Case 2️⃣: Explicit Render

render :edit
render json: @post
render plain: "Hello"
render status: 404

Case 3️⃣: Redirect

redirect_to posts_path

Sends:

HTTP 302 Redirect

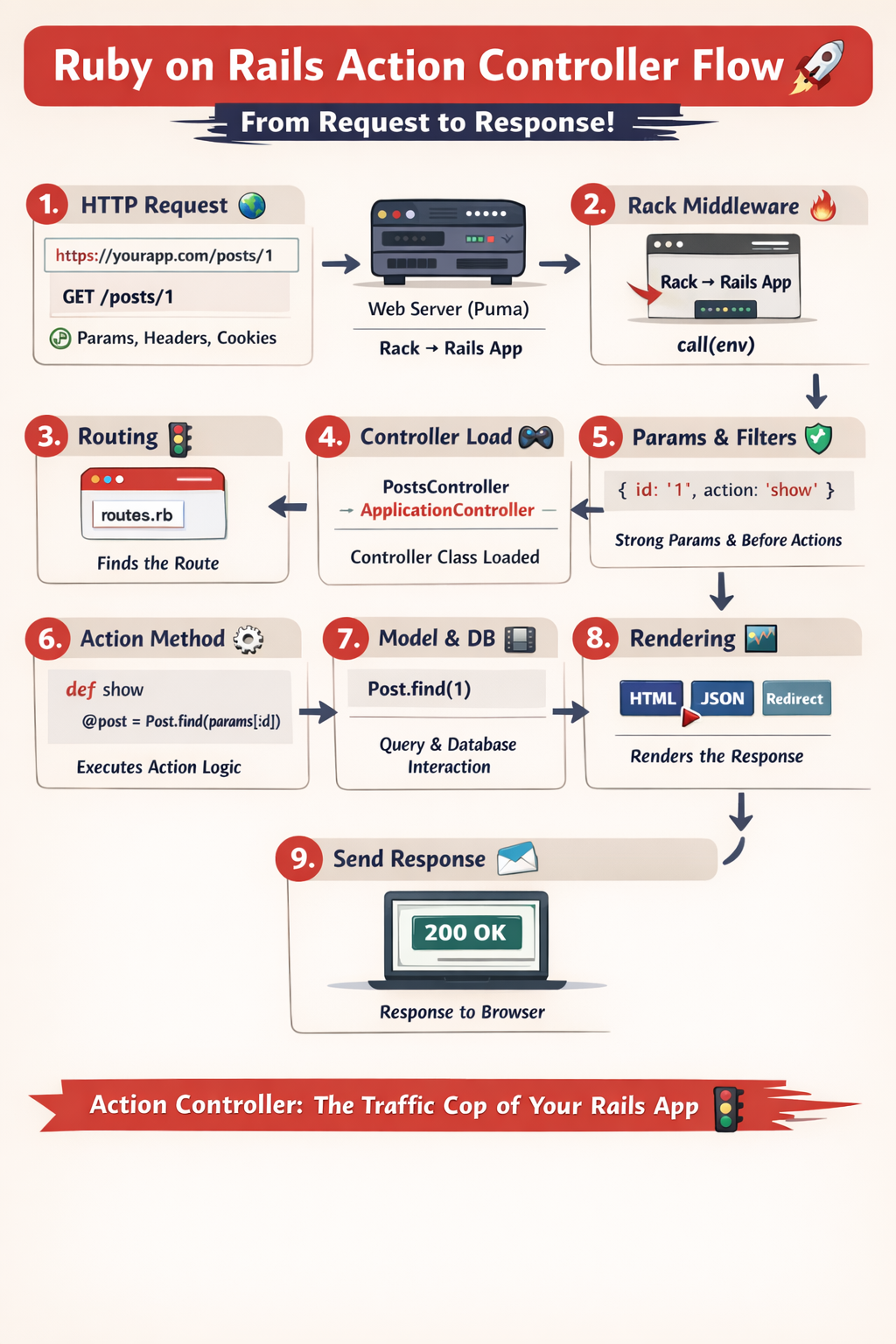

🧩 1️⃣1️⃣ The Full Internal Processing Flow

Here’s the complete lifecycle:

1. Browser sends HTTP request
2. Web Server (Puma) receives
3. Rack middleware stack processes
4. Rails Router matches route
5. Controller class loaded
6. Controller instance created
7. Params constructed
8. before_actions run
9. Action method executes
10. Model interaction happens
11. View rendered
12. Response returned to browser

🏗 1️⃣2️⃣ Important Classes in Action Controller

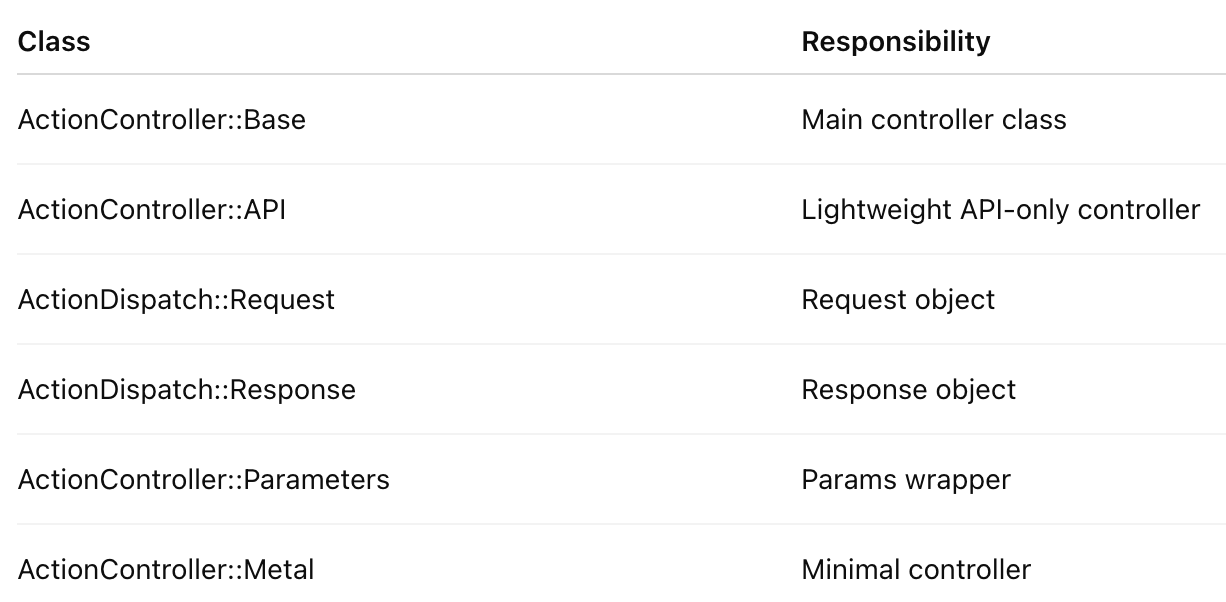

📦 Core Classes

🧪 1️⃣3️⃣ Example Full Flow (POST Request)

POST /posts

Body:

{
  "post": {
    "title": "Rails",
    "content": "Powerful framework"
  }
}

Controller:

def create
  @post = Post.new(post_params)

  if @post.save
    redirect_to @post
  else
    render :new
  end
end

Processing Steps:

• Route matches create
• Params extracted
• Strong params applied
• Model validation runs
• DB insert happens
• Redirect or render

🔥 1️⃣4️⃣ API Mode Controllers

If using:

class PostsController < ActionController::API

Rails:

• Skips view rendering
• Skips cookies by default
• Optimized for JSON APIs

Used in microservices & SPA backends.

🛡 1️⃣5️⃣ CSRF Protection

Rails automatically adds:

protect_from_forgery with: :exception

Prevents:

• Cross-Site Request Forgery attacks

Works using:

• Authenticity token
• Session verification

🚀 1️⃣6️⃣ Performance Tips

✅ Use before_action wisely
✅ Avoid heavy logic in controllers
✅ Use service objects
✅ Use eager loading
✅ Prefer head :ok when no body needed

🎯 1️⃣7️⃣ Best Practices

✔ Keep controllers thin
✔ Move business logic to models/services
✔ Use strong params always
✔ Use RESTful routes
✔ Avoid N+1 queries

💡 Final Mental Model

Think of Action Controller as:

🎛 The Traffic Police of Your Rails App

It:

• Receives request 🚦
• Verifies identity 🔐
• Extracts data 📦
• Calls business logic 🧠
• Sends response 📤

Without it, Rails app has no direction.

🏁 Final Words

If you master Action Controller, you understand:

• How requests flow
• How security works
• How rendering works
• How Rails truly processes web requests

And that’s where you become not just a Rails developer…

But a Rails Architect 💎🔥
